Peanut Roasting Machine Gas Groundnut Roaster Machine Sesame Grain Roaster Machine

Category:

Description

Product Description Of Grain Roaster Machine

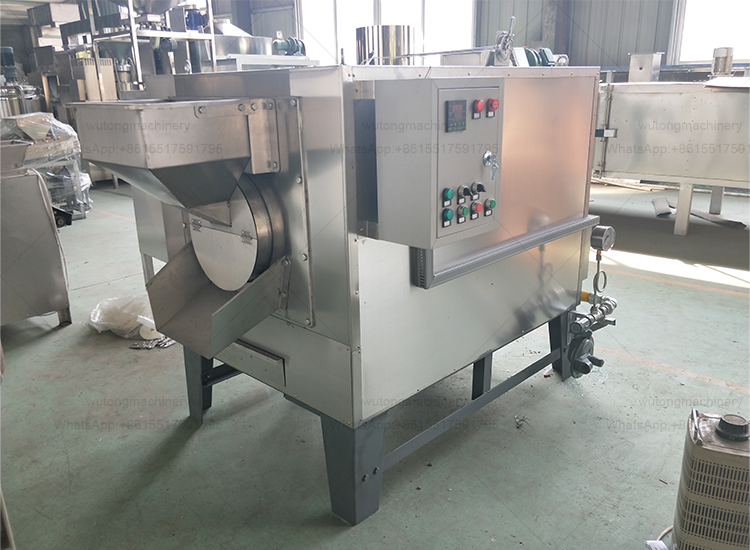

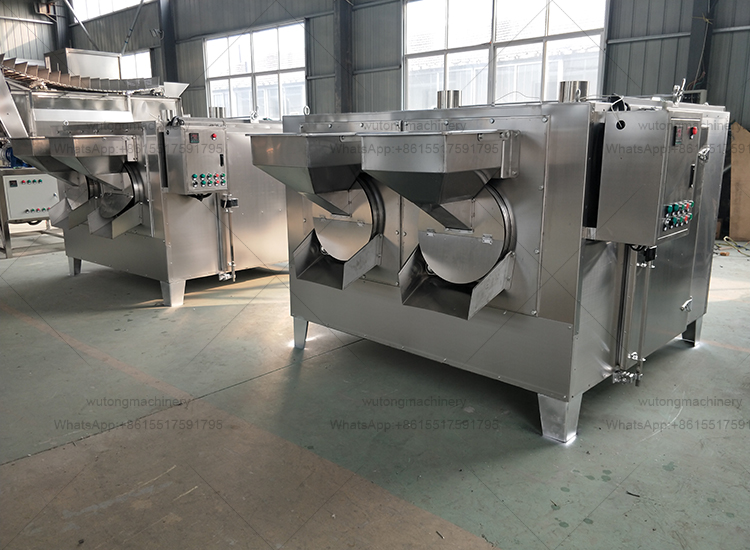

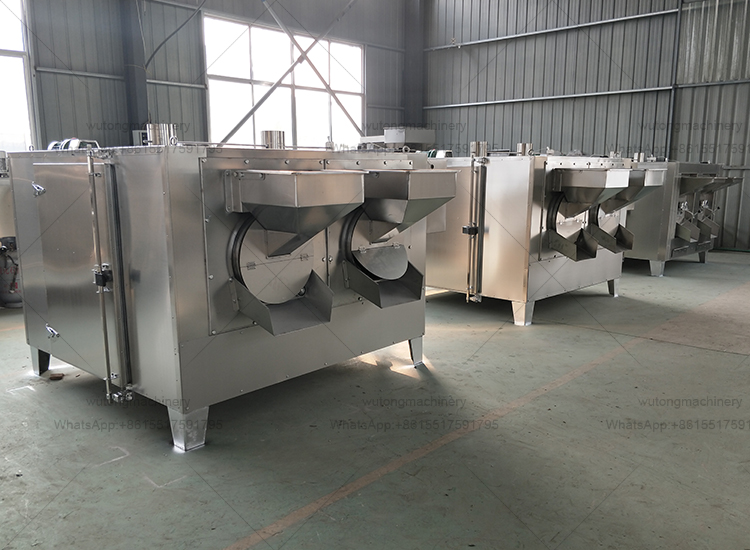

A drum roaster is a roasting machine developed for the processing of nuts (such as hazelnuts, almonds, pine nuts) and nuts (such as peanuts). The machine has simple operation, a small footprint, high efficiency, and is suitable for small and medium-sized food processing enterprises. In order to meet the needs of enterprises of different scales, the drum baking machine is designed with different models such as single cylinders, two cylinders, three cylinders, and four cylinders. If there are special needs, they can be customized according to the actual situation.

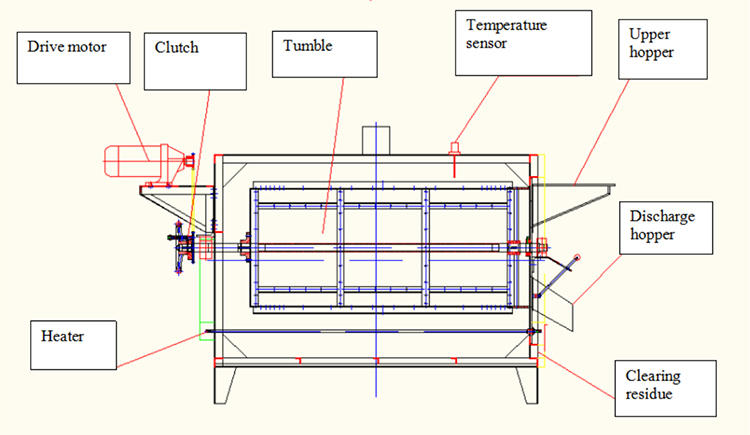

This machine adopts a rotary rolling cage and uses a unique high-quality infrared catalytic burner to realize flameless catalytic combustion of natural gas and liquefied petroleum gas, and is equipped with an automatic temperature control device; during the baking process, the to-be-baked object is heated in the cylinder The propelling device is continuously advancing, forming an uninterrupted cycle, so that it is heated evenly, and effectively guarantees the baking quality.

Technical Parameter Of Grain Roaster Machine

Model No
Transmission power
Output
Power
Dimension(mm)
WTHK-0.5
0.5KW
50KG/H
11KW 380V
2350*900*1650MM
WTHK-1
1.1KW
100KG/H
22.5kw/380v
2900x1400x1650mm
WTHK-2
2.2KW
200KG/H
36-44kw/380v
2900x2100x1650mm
WTHK-3
3.3KW
300-350KG/H
67kw/380v
3000x2900x1650mm
WTHK-4
4.4KW
400-500KG/H
72-90kw/380v
3800x2900x1650mm
WTHK-5
5.5KW
500-600KG/H
112.5kw/380v
4700x2900x1650mm
